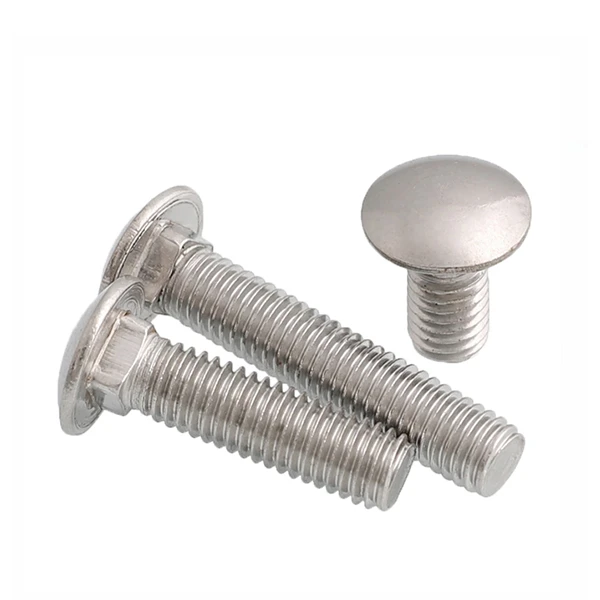

Carriage Bolts
Lub tsheb thauj khoom muaj lub taub hau nceb thiab ntsia hlau (nrog rau cov xov sab nraud), nws xav tau kev sib txuam nrog cov txiv ntoo kom ceev thiab txuas ob feem nrog los ntawm qhov. Ib qho ntawm cov bolts siv dav dav yog tus qauv DIN603 nrog metric M5 rau M20 xov.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Carriage bolts tau muab faib ua ib nrab ntawm lub taub hau lub taub hau loj (suav nrog GB / T14 thiab din603) thiab me me ib nrab puag ncig lub taub hau bolts (xws li GB / t 12-85) raws li lub taub hau loj. Carriage bolt yog ib hom fastener tsim ntawm lub taub hau thiab ntsia hlau (lub tog raj kheej nrog cov xov sab nraud). Nws yuav tsum tau koom tes nrog cov txiv ntseej kom ceev thiab txuas ob feem nrog los ntawm qhov. Feem ntau hais lus, bolts yog siv los txuas ob yam khoom, feem ntau los ntawm lub teeb qhov. Lawv yuav tsum tau siv ua ke nrog cov txiv ntseej, thiab ib qho bolts tsis ua lub luag haujlwm txuas. Cov cuab yeej feem ntau yog spanners. Lub taub hau feem ntau yog hexagonal thiab feem ntau loj. Carriage bolts yog siv rau hauv qhov zawj. Lub caj dab square yog daig hauv qhov zawj thaum lub sijhawm teeb tsa, uas tuaj yeem tiv thaiv lub bolt los ntawm kev tig. Carriage bolts tuaj yeem txav mus rau qhov sib npaug hauv qhov zawj. Vim hais tias lub taub hau ntawm lub laub ntsia liaj qhov rooj yog puag ncig, tsis muaj qhov tsim ntawm cross groove lossis hexagonal socket thiab lwm yam khoom siv hluav taws xob muaj, uas tuaj yeem ua lub luag haujlwm ntawm kev tiv thaiv tub sab hauv txoj kev sib txuas tiag tiag.
Kev tsim khoom ntawm Carriage Bolts
Specification ntawm Carriage Bolts
d | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
P | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
b | L Tsawg dua lossis sib npaug li 125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 |
125＜L Tsawg dua lossis sib npaug rau 200 | 22 | 24 | 28 | 32 | 36 | 44 | 52 | |
L>200 | - | - | 41 | 45 | 49 | 57 | 65 | |
ua dk | max | 13.55 | 16.55 | 20.65 | 24.65 | 30.65 | 38.8 | 46.8 |
min | 12.45 | 15.45 | 19.35 | 23.35 | 29.35 | 37.2 | 45.2 | |
ds | max | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
min | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | |
k1 | max | 4.1 | 4.6 | 5.6 | 6.6 | 8.75 | 12.9 | 15.9 |
min | 2.9 | 3.4 | 4.4 | 5.4 | 7.25 | 11.1 | 14.1 | |
k | max | 3.3 | 3.88 | 4.88 | 5.38 | 6.95 | 8.95 | 11.05 |
min | 2.7 | 3.12 | 4.12 | 4.62 | 6.05 | 8.05 | 9.95 | |
r1 | ≈ | 10.7 | 12.6 | 16 | 19.2 | 24.1 | 29.3 | 33.9 |
r2 | max | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 |
r3 | max | 0.75 | 0.9 | 1.2 | 1.5 | 1.8 | 2.4 | 3 |
s | max | 5.48 | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 | 20.84 |
min | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | |
Common Qib thiab Txheej
Txuj | Khoom siv | Qib | Ua kom tiav | Xov |
DIN933 | carbon hlau | 4.6 | Plain | UNC |
Zinc plated | ||||
Hlau alloy | Yellow zinc plated | |||
PTFE | ||||
Stainless hlau | Dub Oxide | UNF | ||
Dacromet | ||||
Lwm yam | HDG | |||
Lwm yam |
Daim ntawv thov cheeb tsam ntawm Carriage Bolts
Lub laub ntsia liaj qhov rooj tsis siv dav hauv peb lub neej txhua hnub vim nws qhov tshwj xeeb square caj dab tsim. Lub carriage bolt yog heev haum rau kho ntoo rau hlau. Xwb, square neck carriage bolts tuaj yeem siv los tuav ob daim ntoo ua ke. Kuj tseem muaj cov qauv tshwj xeeb ntawm cov tsheb thauj khoom uas ua tau zoo txuas ob qhov sib cais hlau ua ke. Tsis tas li ntawd, lawv tuaj yeem siv rau ntau yam kev lag luam sib txawv xws li kev lag luam dej, kev lag luam tsheb ciav hlau, kev ua liaj ua teb thiab tsuas.
FAQ
Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom ntawm hex bolts thiab txiv ntoo rau ntau tshaj 20 xyoo. Peb muaj ob lub Hoobkas, ib qho hauv Shanghai thiab lwm qhov hauv Jiangsu. Peb lub peev xwm ntau lawm tuaj yeem yog 20000 ntxiv rau tons hauv ib xyoos. Peb tuaj yeem kho peb cov khoom raws li cov neeg siv khoom xav tau, kos duab thiab qauv.
Q2: Muaj pes tsawg xyoo koj ua lag luam txawv teb chaws?
A: Peb muaj ntau tshaj 20 xyoo dhau los hauv kev xa khoom mus rau thoob ntiaj teb nrog peb cov khoom zoo tshaj plaws. Tam sim no peb tau xa tawm ntau tshaj 40 lub teb chaws, xws li Spain, Lub Tebchaws Yelemees, Ltalis, Belgium, United Kingdom, Lithuania, Tebchaws USA, Canada, Australia, Singapore, Nyiv, Thaib, Malaysia, Kaus Lim Qab Teb, Indonesia, Egypt, Philippines thiab lwm yam.
Q3: Koj puas muaj cov khoom tso tawm txaus?
A: Peb muaj Tshuag txaus hauv warehouses nrog ntau peev. Peb muab kev pabcuam 24- teev. Rau feem ntau cov qauv, peb muaj lawv ntawm Tshuag, xws li hex bolts, hex txiv ntseej, thiab lwm yam.
Q4: Yuav ua li cas kom ntseeg tau tias txhua tus txheej txheem zoo?
A: Ua ntej, peb muaj kev kos duab rau txhua yam khoom thaum tsim khoom.
Qhov thib ob, peb cov neeg ua haujlwm feem ntau muaj ntau tshaj 10- xyoo dhau los ntawm kev ua hex bolts.
Thib peb, peb cov neeg QC yuav kuaj xyuas txhua 2 teev. Yog tias pom qhov tsis zoo, lawv yuav nres qhov porduction tam sim ntawd.
Tom qab ntawd, cov khoom tiav yuav raug kuaj xyuas dua ua ntej xa khoom xa tuaj uas lav txhua yam khoom zoo.
Q5: Yuav ua li cas kom muaj kev nyab xeeb ntawm kev thauj mus los ntev?
A: Peb ntim rau hauv cov thawv ua ntej, thiab tom qab ntawd ntim cov thawv rau ntawm pallets. Lub pallet yog yooj yim heev los nqa los ntawm Forklift wihch yuav tiv thaiv cov thawv los ntawm kev puas tsuaj. Cov pab pawg kws tshaj lij uas khaws txhua qhov kev ntim khoom kom zoo.
Q6: Yam khoom twg koj tuaj yeem hloov kho?
A: Ib qho yog cov qauv, xws li DIN933, hex bolts. Lwm qhov yog Non-standard qhov chaw. Yog tias koj xav tau cov qauv, koj tuaj yeem qhia tus qauv, qhov loj me, qib (khoom siv), txheej thiab kom muaj nuj nqis. Piv txwv li, koj xav yuav DIN933, M12X60, qib 8.8, zinc plated thiab 20000pcs.
Yog tias koj xav tau qhov tsis yog tus qauv, koj tuaj yeem qhia peb cov qauv, kos duab lossis cov lus piav qhia ntxaws. Tom qab ntawd peb tus engineer yuav ua cov duab kos rau koj.
Cim npe nrov: carriage bolts, Suav teb, manufacturers, lwm tus neeg, Hoobkas, kev cai, lag luam wholesale, nqe
