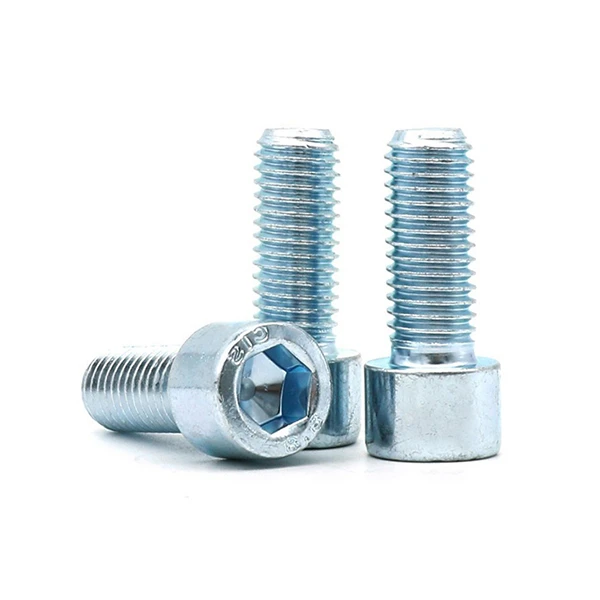

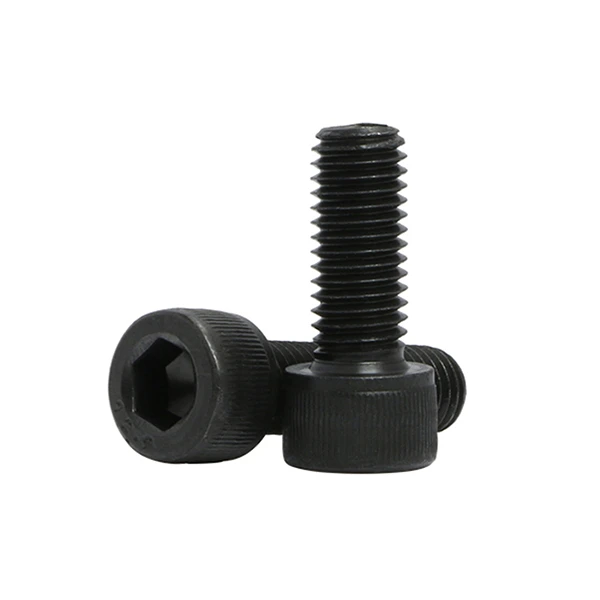

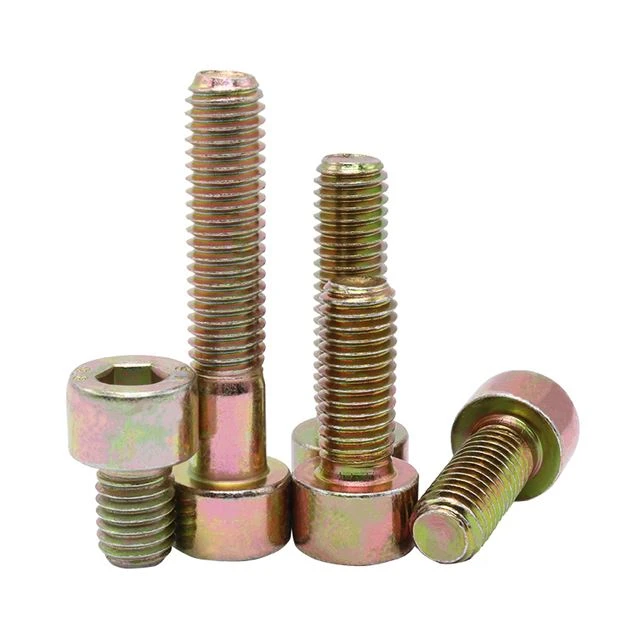

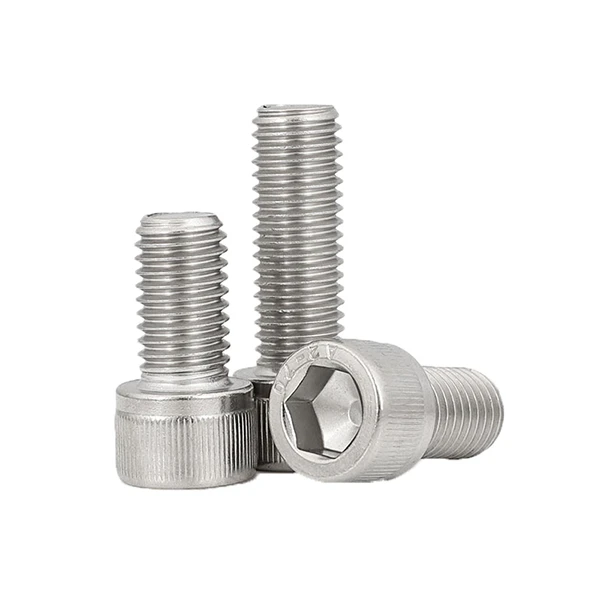

DIN912 Hex Socket Bolt

DIN912 hexagon socket head cap bolts tseem hu ua Allen bolts. Hexagon socket taub hau bolts yog dav siv nyob rau hauv txhua yam kev teeb tsa vim lawv yooj yim rau fasten, disassemble, thiab tsis yooj yim rau plam.

Xa kev nug

Kev xa khoom sai
Quality Assurance
24/7 Kev Pabcuam Cov Neeg Siv Khoom

Khoom Taw qhia

Cov xov txoj kab uas hla ntawm DIN912 hex socket bolt feem ntau yog M1. Hex socket ntsia hlau nyob rau hauv kev ua lag luam feem ntau yog ua los ntawm carbon steel qib 8.8/10.9/12.9, stainless hlau yog A{15}}/A4-70/A4-80 thiab tooj liab, nylon 6.6 thiab lwm yam cov ntaub ntawv, qhov chaw kho mob feem ntau yog dub, galvanized.

Kev tsim khoom ntawm Hex Socket Bolt

Production Process of DIN912 Hex Socket Bolt

Specification ntawm Hex Socket Bolt

DIN912 Hex Socket Bolt

d		M1.4	M1.6	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)	M20
P	Nyias	0.3	0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5
	Zoo 1	-	-	-	-	-	-	-	-	1	1.25	1.25	1.5	1.5	1.5	1.5
	Zoo 2	-	-	-	-	-	-	-	-	-	1	1.5	-	-	2	2
dk	Max	2.6	3	3.8	4.5	5.5	7	8.5	10	13	16	18	21	24	27	30
	Max rau knurled taub hau	2.74	3.14	3.98	4.68	5.68	7.22	8.72	10.22	13.27	16.27	18.27	21.33	24.33	27.33	30.33
	Min	2.46	2.86	3.62	4.32	5.32	6.78	8.28	9.78	12.73	15.73	17.73	20.67	23.67	26.67	29.67
da	Max	1.8	2	2.6	3.1	3.6	4.7	5.7	6.8	9.2	11.2	13.7	15.7	17.7	20.2	22.4
ds	Max	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20
	Min	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.82	7.78	9.78	11.73	13.73	15.73	17.73	19.67
e	Min	1.5	1.73	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72	16	16	19.44
k	Max	1.4	1.6	2	2.5	3	4	5	6	8	10	12	14	16	18	20
	Min	1.26	1.46	1.86	2.36	2.86	3.82	4.82	5.7	7.64	9.64	11.57	13.57	15.57	17.57	19.48
s	Nominal	1.3	1.5	1.5	2	2.5	3	4	5	6	8	10	12	14	14	17
	Min	1.32	1.52	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032	14.032	14.032	17.05
	Max	1.36	1.56	1.56	2.06	2.58	3.08	4.095	5.14	6.14	8.175	10.175	12.212	14.212	14.212	17.23
t	Min	0.6	0.7	1	1.1	1.3	2	2.5	3	4	5	6	7	8	9	10
w	Min	0.5	0.55	0.55	0.85	1.15	1.4	1.9	2.3	3	4	4.8	5.8	6.8	7.8	8.6

d		(M22)	M24	(M27)	M30	(M33)	M36	M42	M48	M56	M64	M72	M80	M90	M100
P	Nyias	2.5	3	3	3.5	3.5	4	4.5	5	5.5	6	6	6	6	6
	Zoo 1	1.5	2	2	2	2	3	3	3	4	4	4	4	4	4
	Zoo 2	2	-	-	-	-	-	-	-	-	-	-	-	-	-
dk	Max	33	36	40	45	50	54	63	72	84	96	108	120	135	150
	Max rau knurled taub hau	33.39	36.39	40.39	45.39	50.39	54.46	63.46	72.46	84.54	96.54	108.54	120.54	135.63	150.63
	Min	32.61	35.61	39.61	44.61	49.61	53.54	62.54	71.54	83.46	95.46	107.46	119.46	134.37	149.37
da	Max	24.4	26.4	30.4	33.4	36.4	39.4	45.5	52.6	63	71	79	87	97	107
ds	Max	22	24	27	30	33	36	42	48	56	64	72	80	90	100
	Min	21.67	23.67	26.67	29.67	32.61	35.61	41.61	47.61	55.54	63.54	71.54	79.54	89.46	99.46
e	Min	19.44	21.73	21.73	25.15	27.43	30.85	36.57	41.13	46.83	52.53	62.81	74.21	85.61	97.04
k	Max	22	24	27	30	33	36	42	48	56	64	72	80	90	100
	Min	21.48	23.48	26.48	29.48	32.38	35.38	41.38	47.38	55.26	63.26	71.26	79.26	89.13	99.13
s	Nominal	17	19	19	22	24	27	32	36	41	46	55	65	75	85
	Min	17.05	19.065	19.065	22.065	24.065	27.065	32.08	36.08	41.08	46.08	55.1	65.1	75.1	85.12
	Max	17.23	19.275	19.275	22.275	24.275	27.275	32.33	36.33	41.33	46.33	55.4	65.4	75.4	85.47
t	Min	11	12	13.5	15.5	18	19	24	28	34	38	43	48	54	60
w	Min	9.4	10.4	11.9	13.1	13.5	15.3	16.3	17.5	19	22	25	27	32	34

Daim Ntawv Thov Cheeb Tsam ntawm Hex Socket Bolt

Hexagon socket bolts yog siv dav, xws li cov khoom siv me me, cov khoom siv hluav taws xob me, cov khoom siv hluav taws xob, mus rau tsheb, nkoj, dav hlau cannons thiab lwm yam. DIN912 Allen bolts yog siv hauv cov khoom siv hluav taws xob, khoom siv hluav taws xob, khoom siv hluav taws xob, tshuaj, dej txuag, tshuab. thiab khoom siv, rooj tog zaum thiab lwm yam kev lag luam.

Nws yog tsim nyog hais tias lub hexagon socket taub hau bolts yog tshwj xeeb yog siv nyob rau hauv cov khoom ntawm lub pwm Hoobkas. Qhov no yuav yog vim muaj ntau hom bolts siv rau ntawm cov khoom sib txawv. Qee cov khoom yuav tsum tau hex qhov (socket head cap) screws los txuas thiab fasten, thiab qee qhov xav tau lwm hom bolts los txuas thiab ruaj khov.

Application area of DIN912 Hex Socket Bolt
