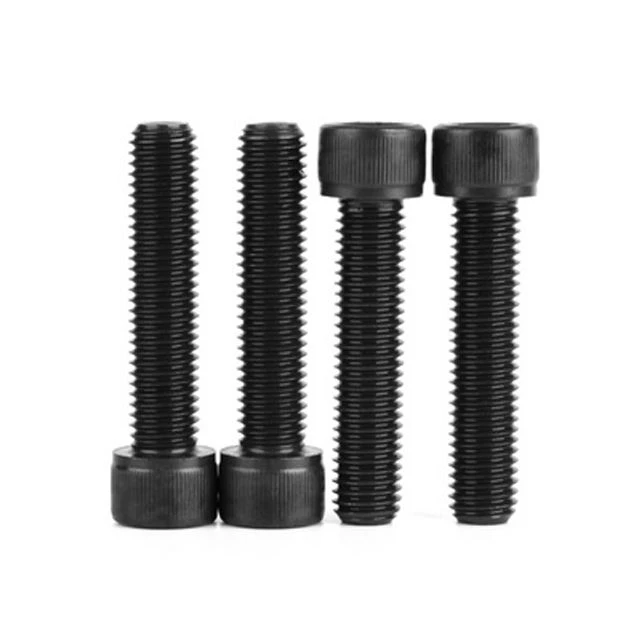

Hex Socket Bolt
Hex socket taub hau bolts, tseem hu ua Allen bolts, cylindrical hex socket taub hau hau screws, hex socket taub hau hau screws, khob taub hau screws. Hexagon socket screws yog ua los ntawm stainless hlau, carbon hlau, hlau alloy thiab lwm yam.
- Kev xa khoom sai
- Quality Assurance
- 24/7 Kev Pabcuam Cov Neeg Siv Khoom
Khoom Taw qhia
Hex socket taub hau bolts, tseem hu ua Allen bolts, cylindrical hex socket taub hau hau screws, hex socket taub hau hau screws, khob taub hau screws. Hexagon socket screws yog ua los ntawm stainless hlau, carbon hlau, hlau alloy thiab lwm yam.
1. Tag nrho cov hex qhov (socket) ntsia liaj qhov rooj uas tsim los ntawm peb lub tuam txhab siv cov ntaub ntawv raw los ntawm cov neeg paub zoo steel mills, thiab cov ntaub ntawv qhia txog cov khoom siv tuaj yeem muab tau..
2. Ntau qhov ntau thiab tsawg, xov loj tuaj yeem yog M3-M64, qhov ntev tuaj yeem yog 10mm-3000mm.
3. Allen ntsia liaj qhov rooj yog ua los ntawm cov hlau zoo, nws muaj cov xov zoo precision, xws li 6g, 6h thiab lwm yam. Nws yog du heev thaum sib txuam nrog cov txiv ntoo.
4. Qib ntawm hex socket bolt yog raws li ISO tus qauv, xws li ISO898-1. Tsis tas li ntawd, peb lub qhov (socket) hex ntsia hlau muaj cov txheej zoo nkauj nrog zoo corrosion kuj. Lub toughness ntawm hex qhov (socket) lub taub hau hau hau screws npog nrog txheej yuav ua tau ntev dua.
Kev tsim khoom ntawm Hex Socket Bolt
Specification ntawm Hex Socket Bolt
d | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | |
P | Nyias | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
Zoo 1 | - | - | - | - | - | - | - | - | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | |
Zoo 2 | - | - | - | - | - | - | - | - | - | 1 | 1.5 | - | - | 2 | 2 | |
dk | Max | 2.6 | 3 | 3.8 | 4.5 | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 |
Max rau knurled taub hau | 2.74 | 3.14 | 3.98 | 4.68 | 5.68 | 7.22 | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 27.33 | 30.33 | |
Min | 2.46 | 2.86 | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | |
da | Max | 1.8 | 2 | 2.6 | 3.1 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 |
ds | Max | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
Min | 1.26 | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | |
e | Min | 1.5 | 1.73 | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.72 | 16 | 16 | 19.44 |
k | Max | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
Min | 1.26 | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | |
s | Nominal | 1.3 | 1.5 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 14 | 17 |
Min | 1.32 | 1.52 | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 | 14.032 | 14.032 | 17.05 | |
Max | 1.36 | 1.56 | 1.56 | 2.06 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | 12.212 | 14.212 | 14.212 | 17.23 | |
t | Min | 0.6 | 0.7 | 1 | 1.1 | 1.3 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
w | Min | 0.5 | 0.55 | 0.55 | 0.85 | 1.15 | 1.4 | 1.9 | 2.3 | 3 | 4 | 4.8 | 5.8 | 6.8 | 7.8 | 8.6 |
d | (M22) | M24 | (M27) | M30 | (M33) | M36 | M42 | M48 | M56 | M64 | M72 | M80 | M90 | M100 | |
P | Nyias | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6 | 6 | 6 | 6 |
Zoo 1 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | |
Zoo 2 | 2 | - | - | - | - | - | - | - | - | - | - | - | - | - | |
dk | Max | 33 | 36 | 40 | 45 | 50 | 54 | 63 | 72 | 84 | 96 | 108 | 120 | 135 | 150 |
Max rau knurled taub hau | 33.39 | 36.39 | 40.39 | 45.39 | 50.39 | 54.46 | 63.46 | 72.46 | 84.54 | 96.54 | 108.54 | 120.54 | 135.63 | 150.63 | |
Min | 32.61 | 35.61 | 39.61 | 44.61 | 49.61 | 53.54 | 62.54 | 71.54 | 83.46 | 95.46 | 107.46 | 119.46 | 134.37 | 149.37 | |
da | Max | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 45.5 | 52.6 | 63 | 71 | 79 | 87 | 97 | 107 |
ds | Max | 22 | 24 | 27 | 30 | 33 | 36 | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 |
Min | 21.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | 41.61 | 47.61 | 55.54 | 63.54 | 71.54 | 79.54 | 89.46 | 99.46 | |
e | Min | 19.44 | 21.73 | 21.73 | 25.15 | 27.43 | 30.85 | 36.57 | 41.13 | 46.83 | 52.53 | 62.81 | 74.21 | 85.61 | 97.04 |
k | Max | 22 | 24 | 27 | 30 | 33 | 36 | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 |
Min | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 41.38 | 47.38 | 55.26 | 63.26 | 71.26 | 79.26 | 89.13 | 99.13 | |
s | Nominal | 17 | 19 | 19 | 22 | 24 | 27 | 32 | 36 | 41 | 46 | 55 | 65 | 75 | 85 |
Min | 17.05 | 19.065 | 19.065 | 22.065 | 24.065 | 27.065 | 32.08 | 36.08 | 41.08 | 46.08 | 55.1 | 65.1 | 75.1 | 85.12 | |
Max | 17.23 | 19.275 | 19.275 | 22.275 | 24.275 | 27.275 | 32.33 | 36.33 | 41.33 | 46.33 | 55.4 | 65.4 | 75.4 | 85.47 | |
t | Min | 11 | 12 | 13.5 | 15.5 | 18 | 19 | 24 | 28 | 34 | 38 | 43 | 48 | 54 | 60 |
w | Min | 9.4 | 10.4 | 11.9 | 13.1 | 13.5 | 15.3 | 16.3 | 17.5 | 19 | 22 | 25 | 27 | 32 | 34 |
Daim Ntawv Thov Cheeb Tsam ntawm Qib 8.8 Carriage Bolt
Hexagon socket head cap screws yog ib hom ntawm lub qhov taub hau, feem ntau yog siv rau hauv cov cuab yeej siv tshuab, cov khoom siv tshuaj, cov twj tso kua mis, cov nkoj, cov khoom siv hluav taws xob thiab lwm qhov chaw. Tag nrho cov xov hex socket screws yog siv ntau dua, thaum ib nrab xov hexagon socket cap screws tau dav siv hauv Suav teb. Feem ntau siv nyob rau hauv cov khoom siv export.
Tau kawg, nyob rau qee qhov chaw tshwj xeeb hauv cov teb no, lwm cov khoom siv kuj tseem siv, xws li cov ntsia hlau ntsia hlau, flange ceev, U-bolts, lub taub hau tiaj tus hex lub qhov ntsia hlau, T-bolts, puag ncig lub taub hau square caj dab bolts thiab puag ncig lub taub hau oval caj dab bolts. .
Yuav Ua Li Cas Yuav Hex Socket Bolt los ntawm peb?
Kev nug
Muaj ob hom fasteners. Ib qho yog cov qauv, xws li DIN912 hex socket taub hau bolts. Lwm qhov yog cov khoom tsis yog tus qauv. Yog tias koj xav tau cov qauv, koj tuaj yeem qhia peb tus qauv, qhov loj me, qib (khoom siv), txheej thiab ntau npaum li cas koj xav tau. Piv txwv li, koj xav yuav DIN912, M12X60, qib 8.8, galvanized thiab 20000pcs.
Yog tias koj xav tau qhov tsis yog tus qauv, koj tuaj yeem qhia peb cov qauv, kos duab lossis cov lus qhia ntxaws. Tom qab ntawd peb cov engineers yuav ua cov duab kos rau koj.
Nqe thiab them nyiaj
Tus nqi tuaj yeem yog nqe / thooj, lossis nqi / kg. Peb tuaj yeem hais EXW, FOB, CFR, CIF nrog T / T, L / C, Western Union, thiab lwm yam. Los yog lwm txoj kev pom zoo nrog cov neeg siv khoom.
Kev txiav txim
Tom qab kuaj xyuas, yog tias tus nqi thiab lub sijhawm ua haujlwm yog ob qho tib si, Peb yuav pib tsim tom qab them nyiaj ua ntej raws li qhov xav tau peb cog lus.
Kev pov hwm zoo
Peb yuav PICC PRODUCTS LIABILITY InsurANCE txhua xyoo. Peb tuaj yeem pom zoo hauv daim ntawv cog lus tias peb yuav hloov cov khoom lossis rov qab cov nyiaj yog tias muaj qee qhov teeb meem zoo tom qab koj tau txais peb cov khoom. Yog tias muaj teeb meem zoo tshwm sim tom qab siv, peb yuav taug qab cov khoom los daws cov teeb meem. Thiab peb txoj cai tuav pov hwm tuaj yeem them koj qhov poob.
FAQ
Q1: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?
A: Peb yog cov chaw tsim khoom ntawm hex bolts thiab txiv ntoo rau ntau tshaj 20 xyoo. Peb muaj ob lub Hoobkas, ib qho hauv Shanghai thiab lwm qhov hauv Jiangsu. Peb lub peev xwm ntau lawm tuaj yeem yog 20000 ntxiv rau tons hauv ib xyoos. Peb tuaj yeem kho peb cov khoom raws li cov neeg siv khoom xav tau, kos duab thiab qauv.
Q2: Muaj pes tsawg xyoo koj ua lag luam txawv teb chaws?
A: Peb muaj ntau tshaj 20 xyoo dhau los hauv kev xa khoom mus rau thoob ntiaj teb nrog peb cov khoom zoo tshaj plaws. Tam sim no peb tau xa tawm ntau tshaj 40 lub teb chaws, xws li Spain, Lub Tebchaws Yelemees, Ltalis, Belgium, United Kingdom, Lithuania, Tebchaws USA, Canada, Australia, Singapore, Nyiv, Thaib, Malaysia, Kaus Lim Qab Teb, Indonesia, Egypt, Philippines thiab lwm yam.
Q3: Koj puas muaj cov khoom tso tawm txaus?
A: Peb muaj Tshuag txaus hauv warehouses nrog ntau peev. Peb muab kev pabcuam 24- teev. Rau feem ntau cov qauv, peb muaj lawv ntawm Tshuag, xws li hex bolts, hex txiv ntseej, thiab lwm yam.
Q4: Yuav ua li cas kom ntseeg tau tias txhua tus txheej txheem zoo?
A: Ua ntej, peb muaj kev kos duab rau txhua yam khoom thaum tsim khoom.
Qhov thib ob, peb cov neeg ua haujlwm feem ntau muaj ntau tshaj 10- xyoo dhau los ntawm kev ua hex bolts.
Thib peb, peb cov neeg QC yuav kuaj xyuas txhua 2 teev. Yog tias pom qhov tsis zoo, lawv yuav nres qhov porduction tam sim ntawd.
Tom qab ntawd, cov khoom tiav yuav raug kuaj xyuas dua ua ntej xa khoom xa tuaj uas lav txhua yam khoom zoo.
Q5: Yuav ua li cas kom muaj kev nyab xeeb ntawm kev thauj mus los ntev?
A: Peb ntim rau hauv cov thawv ua ntej, thiab tom qab ntawd ntim cov thawv rau ntawm pallets. Lub pallet yog yooj yim heev los nqa los ntawm Forklift wihch yuav tiv thaiv cov thawv los ntawm kev puas tsuaj. Cov pab pawg kws tshaj lij uas khaws txhua qhov kev ntim khoom kom zoo.
Q6: Yam khoom twg koj tuaj yeem hloov kho?
A: Ib qho yog cov qauv, xws li DIN933, hex bolts. Lwm qhov yog Non-standard qhov chaw. Yog tias koj xav tau cov qauv, koj tuaj yeem qhia tus qauv, qhov loj me, qib (khoom siv), txheej thiab kom muaj nuj nqis. Piv txwv li, koj xav yuav DIN933, M12X60, qib 8.8, zinc plated thiab 20000pcs.
Yog tias koj xav tau qhov tsis yog tus qauv, koj tuaj yeem qhia peb cov qauv, kos duab lossis cov lus piav qhia ntxaws. Tom qab ntawd peb tus engineer yuav ua cov duab kos rau koj.
Muaj ntau ntau, xws li hexagon bolts, flange bolts, puag ncig lub taub hau square caj dab bolts, raws li zoo raws li khiav bolts, U-bolts, T-bolts, tiaj tus taub hau hexagon bolts, hex ceev, hex flange ceev.
Q7: Koj puas tuaj yeem muab qee yam qauv?
A: Cov qauv tuaj yeem muab tau raws li koj xav tau.
Cim npe nrov: hex socket bolt, Suav teb, manufacturers, lwm tus neeg, Hoobkas, customized, lag luam wholesale, nqe
